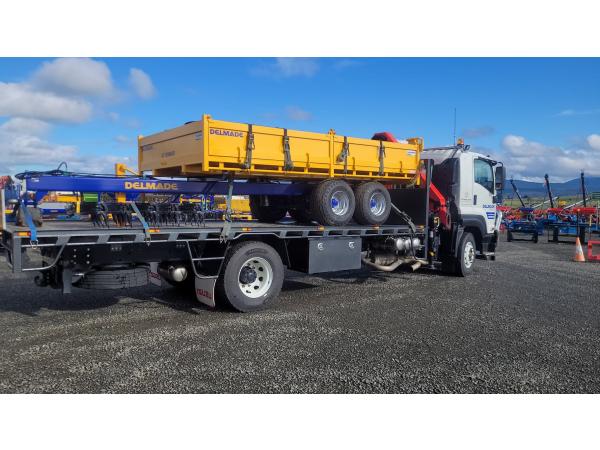

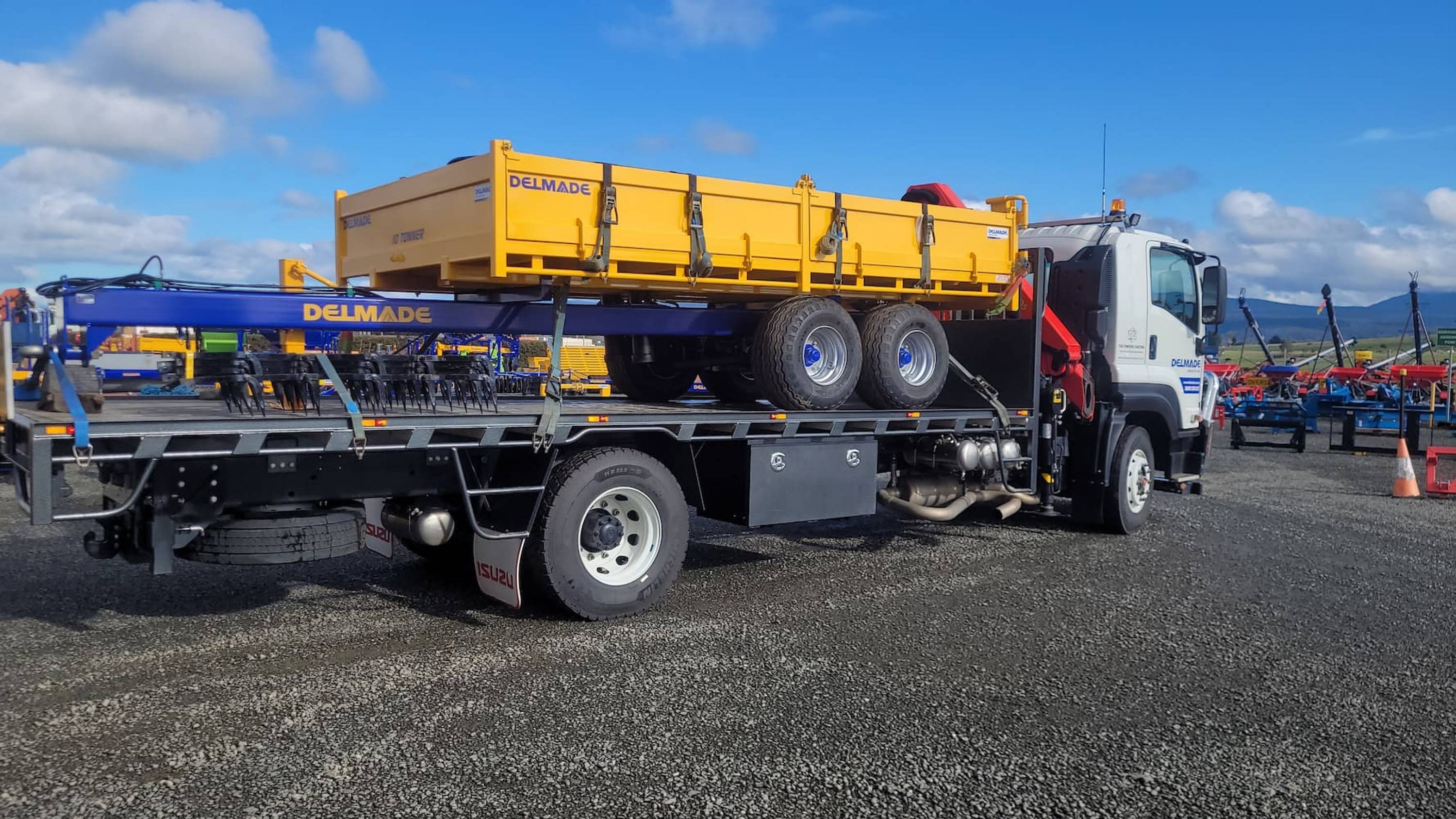

DELMADE 10 Ton Tip Trailer
Product Ref: a9-312
The 10 Ton Delmade Tip Trailer is built super heavy duty. It comes standard with road lights, a hydraulic tail latch, and gravel spreading chains. This makes for extreme versatility, allowing the unit to be used right across the farm, from heavy machinery cartage to carting and spreading gravel.
Product Highlights:
-
"Built Like A Tank"
-
Walking Beam Suspension
- Full width deck
- Optional hay extension for carting hay/silage
Product Details
The Tip Trailer that is "Built Like a Tank"...
Designed for performance in any conditions, this Australian built unit features a walking beam oscillation system, a tandem axle with flotation tyres and a large 2500(W) x 4600(L) deck. The unit can be spec'd up with a two-way tailgate, 3' Hay Extension or Aluminium Ramps.
Features & Benefits
-
- Australian built, extra heavy-duty, built to last
- Removable sides and tailgate – allow versatility and a choice of options
- Hydraulic Tail Latch
- Steel Floor 6mm
- Adjustable H.D. Pole Support (hydraulic option)
- Walking beam tandem axle for difficult terrain
- Tailgate – top-mounted pivot hinge
- Tie rails – ensure the heaviest loads can be secured
- Swivel tow eyelet – security in difficult conditions
- Large flotation tyres for field conditions
- Multi-Stage 2 Cylinder – Hydraulic Ram
- Hydraulic Brakes
- Gravel Spreading Chains
- Road Lights
- Powder Coat Finish
Options
-
- Hydraulic Jack Stand
- Two way Tail Gate
- 3' Hay Extensions
- Aluminium Ramps
- 3PL Trailer Quick Hitch
Dimensions
| Specifications | 10t Model |
| Deck Size (mm) | 2550(W) x 4590(L) |
| Side Height (mm) | 500 |
| Transport Width (mm) | 2649 |
| Total Weight (kg) | 3065.56 |
| Chassis Specs (mm) | 200x100x9 RHS |
| Deck Thickness (mm) | 6 |
| Axle Style & Size | Tandem - 70 mm |
| Tyres / Wheels | 400/60-15.5 |
| Hydraulic Ram System | 2 x Multi Stage |
| Towing Eye | Swivelling - 52 mm |
| Tip Angle (o) | 54 |
| Required Oil Capacity (L) | 31 |
| Brakes | S |
| Road Lights | S |
S= Standard
- = Not available
O = Optional
(This trailer is a heavy duty farm trailer designed for use on the farm and towing behind a tractor. It is not road registerable.)
